Video Recording and Transmission Device

Smart camera that can be mounted on safety helmets or used as a handheld device. Designed specifically for workers in industrial, construction, and manufacturing environments, transmitting real-time video to the control center.

  • Full HD 1080p recording with 120° wide-angle view
  • IP67 waterproof and dustproof rating
  • Flexible mounting on safety helmet or handheld use
  • GPS/UWB real-time positioning
  • Real-time data transmission via WiFi / 4G / 5G

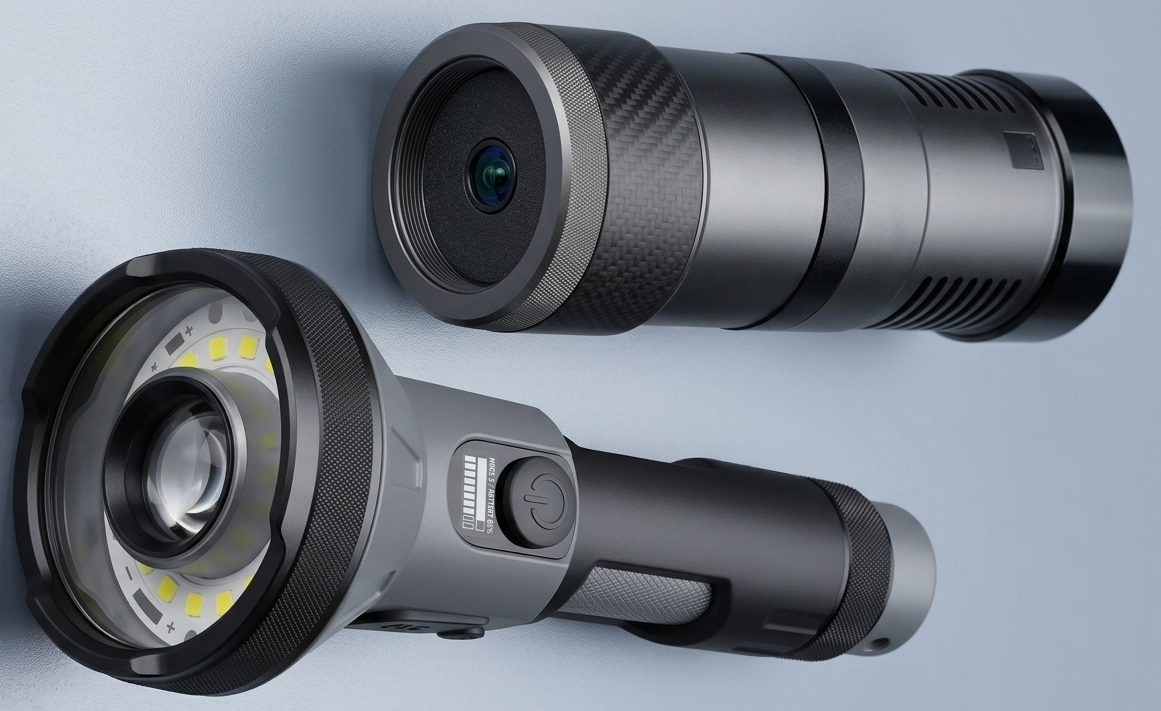

HSafe Camera Structure

Product Overview

HSafe surveillance camera is independently researched and developed by us. It integrates modern technology with GPS positioning, memory card storage, and cloud server data transmission. The device features high durability, compact design, easy installation, and is suitable for various security monitoring and management environments.

  • Modern, compact design, easy to install in multiple positions
  • Real-time GPS positioning
  • Supports large-capacity memory card storage
  • Real-time video and image transmission to Cloud server
  • Emergency SOS button and status LED indicators
  • Sharp image quality, stable 24/7 operation
  • Easy maintenance, disassembly, and firmware upgrade
HSafe Surveillance Camera

Technical Specifications

Parameter Value / Description
Camera System Sony IMX708 12 Megapixel Sensor
Video Resolution Full HD 1920 × 1080 @ 30fps
Video Encoding H.264 / H.265
Still Image Resolution 4608 × 2592 pixels
Focal Length PDAF Autofocus (Phase Detection Auto Focus)
Night Vision Yes (Integrated IR Filter)
Processor ARM Chip
Operating System Linux / Android
Wireless Connectivity WiFi IEEE 802.11, 4G LTE, Bluetooth
Wired Connectivity USB
Storage Supports MicroSD memory card up to 64GB
Battery Lithium 3000mAh (4 - 8 hours usage)
Operating Voltage 5VDC
Charging Port USB Type-C
Main Features • Full HD 1080p50 video recording
• 120° wide-angle view
• PDAF Phase Detection Autofocus
• HDR support
• Real-time video streaming via WiFi & 4G
• GPS Positioning
• Video storage and incident retrieval
• Integration with centralized monitoring software

* Specifications may vary slightly by version. Please contact us for the latest datasheet.

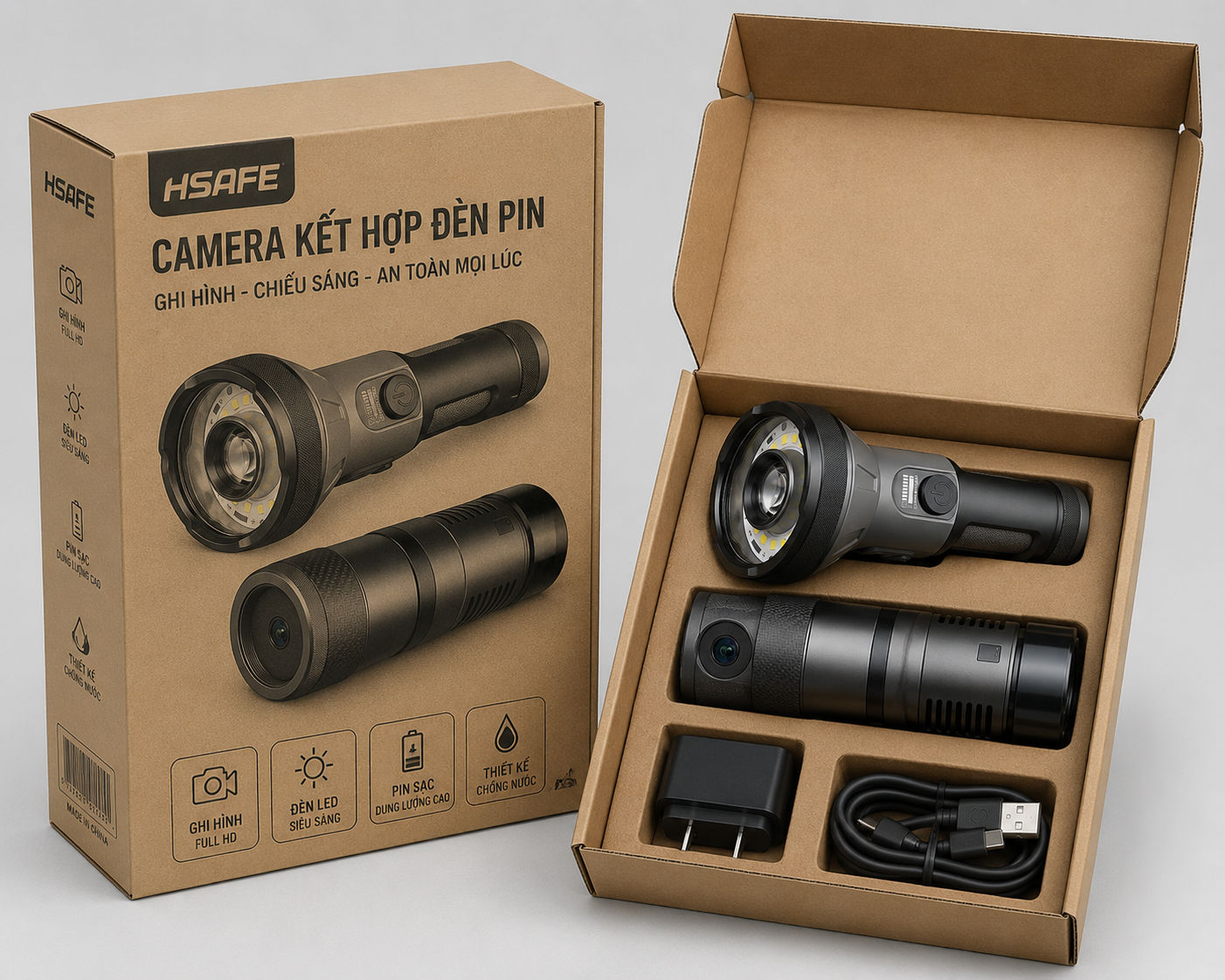

Packaging & Accessories

  • 1 × HSafe Surveillance Camera
  • 1 × USB Type-C Charging Cable (2m)
  • 1 × 5V/2A Power Adapter
  • 1 × 64GB MicroSD Card (pre-installed)
  • 1 × Multi-purpose Mounting Bracket
  • 1 × User Manual & Quick Configuration Guide

Package Dimensions:

≈ 22 × 18 × 12 cm

Package Weight:

≈ 0.5 kg

Installation Guide

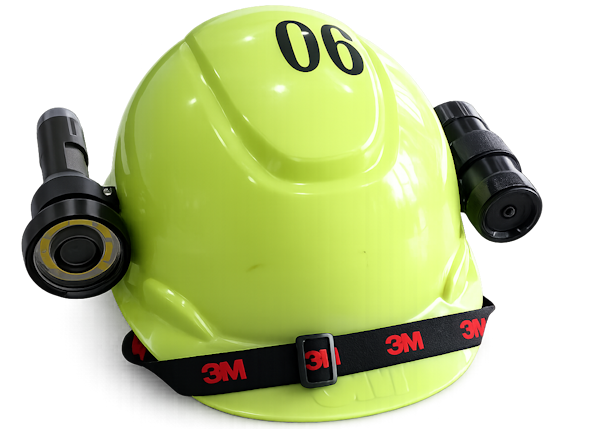

1. Mounting on Safety Helmet
  • Clean the surface of the safety helmet at the desired mounting position.
  • Use the included bracket to attach the camera to the helmet (front or rear).
  • Secure the bracket to the helmet at the pre-supported position.
  • Check that the camera is firmly attached before use.
2. Handheld Use
  • Hold the camera by hand or clip it to clothing/chest using the clip bracket.
  • Point the camera toward the area to be recorded (can be rotated to adjust angle).
  • Press the power button to start recording or streaming.
3. Important Notes
  1. The mounting surface must be clean and dry before attaching or tightening screws.
  2. Ensure the camera is securely mounted to prevent dropping or damage during movement.
  3. Check camera angle and GPS positioning before starting work.
  4. Turn off the device before removing or installing the bracket.
  5. After installation, turn on the device and verify WiFi/4G connection and memory card.
HSafe Camera Installation Guide

Setup & Configuration Guide

LED Status Indicators

---------

---------

---------
